![DW-86L100J1.png](https://static.wixstatic.com/media/8c064d_779c8b750de44415abfd1f9a69d46714~mv2.png/v1/fill/w_252,h_328,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/DW-86L100J1.png)
-86℃ Ultra Low Temperature Freezer DW-86L420J
Product Features
![saveenergy.png](https://static.wixstatic.com/media/8c064d_05066452c95a4ff1afbe8c07fd65b3f8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/saveenergy.png)
Energy savings
Three independent inner doors and three layer sealing structure, having good heat insulation to reduce energy consumption.
![lownoise.png](https://static.wixstatic.com/media/8c064d_72a115eab45e4d5fb85a39e8a2a50dfd~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/lownoise.png)
Low Noise
Innovative refrigeration cabin design reduces operational noise
![reliable.png](https://static.wixstatic.com/media/8c064d_40d3638325674081bc94b2e7b6583cad~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/reliable.png)
Reliable Performance
Cabinet temperature can reach -86℃ with temp uniformity within 4℃
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
100/3.5
Exterior Dimention(W*D*H)mm
769*825*1120
Exterior Dimension(W*D*H)(in)
30.3*32.5*44.1
![DW-86L388J.png](https://static.wixstatic.com/media/8c064d_204acba7ef5348c98dc8ccd1f1d69137~mv2.png/v1/fill/w_63,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L388J.png)
-86℃ Ultra Low Temperature Freezer DW-86L388J
Product Features
![saveenergy.png](https://static.wixstatic.com/media/8c064d_05066452c95a4ff1afbe8c07fd65b3f8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/saveenergy.png)
Energy savings
Hydrocarbon refrigeration technology saving energy by 30%;
![energyrfriendly.png](https://static.wixstatic.com/media/8c064d_3d7bf480f525400b898f64279968fea8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/energyrfriendly.png)
Energy Friendly
World leading power consumption, only 8 Kwh/day
![lownoise.png](https://static.wixstatic.com/media/8c064d_72a115eab45e4d5fb85a39e8a2a50dfd~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/lownoise.png)
Low Noise
Innovative refrigeration cabin design reduces operational noise
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
338/11.9
Exterior Dimention(W*D*H)mm
812*893*1846
Exterior Dimension(W*D*H)(in)
32.0*35.2*72.7
![DW-86L338J.png](https://static.wixstatic.com/media/8c064d_81716e35a31c4c749f89a013abb9a5ee~mv2.png/v1/fill/w_63,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L338J.png)
-86℃ Ultra Low Temperature Freezer DW-86L338J
Product Features
![saveenergy.png](https://static.wixstatic.com/media/8c064d_05066452c95a4ff1afbe8c07fd65b3f8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/saveenergy.png)
Energy savings
Hydrocarbon refrigeration technology saving energy by 30%;
![energyrfriendly.png](https://static.wixstatic.com/media/8c064d_3d7bf480f525400b898f64279968fea8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/energyrfriendly.png)
Energy Friendly
Using hydrocarbon refrigerants which are pollution-free and with zero ozone destruction and zero greenhouse gas effects, making it environmentally friendly
![reliable.png](https://static.wixstatic.com/media/8c064d_40d3638325674081bc94b2e7b6583cad~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/reliable.png)
Superior Uniformity
Cabinet temperature can reach -86℃ with temp uniformity within 4℃
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
338/11.9
Exterior Dimention(W*D*H)mm
812*893*1846
Exterior Dimension(W*D*H)(in)
32.0*35.2*72.7
![DW-86L490J.png](https://static.wixstatic.com/media/8c064d_1089612576dc42f2967bacc4e2a6b5b2~mv2.png/v1/fill/w_63,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L490J.png)
-86℃ Ultra Low Temperature Freezer DW-86L490J
Product Features
![saveenergy.png](https://static.wixstatic.com/media/8c064d_05066452c95a4ff1afbe8c07fd65b3f8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/saveenergy.png)
Energy Saving
Hydrocarbon refrigeration technology saving energy by 30%;
![energyrfriendly.png](https://static.wixstatic.com/media/8c064d_3d7bf480f525400b898f64279968fea8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/energyrfriendly.png)
Energy Friendly
Using hydrocarbon refrigerants which are pollution-free and with zero ozone destruction and zero greenhouse gas effects, making it environmentally friendly
![reliable.png](https://static.wixstatic.com/media/8c064d_40d3638325674081bc94b2e7b6583cad~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/reliable.png)
Superior Uniformity
Superior uniformity of±5℃ satisfying 3Q standards for pharmaceutical factories
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
490/17.3
Exterior Dimention(W*D*H)mm
860*900*1980
Exterior Dimension(W*D*H)(in)
33.9*35.4*78
![DW-86L578J.png](https://static.wixstatic.com/media/8c064d_0f1c404e84b44da2ab92af2e46fa1fe4~mv2.png/v1/fill/w_49,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L578J.png)
-86℃ Ultra Low Temperature Freezer DW-86L578J
Product Features
![energyrfriendly.png](https://static.wixstatic.com/media/8c064d_3d7bf480f525400b898f64279968fea8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/energyrfriendly.png)
Energy Efficient
World leading power consumption, only 8.5 Kwh/day
![lownoise.png](https://static.wixstatic.com/media/8c064d_72a115eab45e4d5fb85a39e8a2a50dfd~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/lownoise.png)
Low Noise
Innovative refrigeration cabin design reduces operational noise
![reliable.png](https://static.wixstatic.com/media/8c064d_40d3638325674081bc94b2e7b6583cad~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/reliable.png)
Reliable Performance
Cabinet temperature can reach -86℃ with temp uniformity within 5℃
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
578/20.4
Exterior Dimention(W*D*H)mm
895*980*1960
Exterior Dimension(W*D*H)(in)
35.4*38.6*77.2
![DW-86L828J.png](https://static.wixstatic.com/media/8c064d_a7c432312f7946a78cc5c2e62ddd12fd~mv2.png/v1/fill/w_60,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L828J.png)
-86℃ Ultra Low Temperature Freezer DW-86L828J
Product Features
![energyrfriendly.png](https://static.wixstatic.com/media/8c064d_3d7bf480f525400b898f64279968fea8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/energyrfriendly.png)
Energy Efficient
World leading power consumption, only 11.5 Kwh/day
![lownoise.png](https://static.wixstatic.com/media/8c064d_72a115eab45e4d5fb85a39e8a2a50dfd~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/lownoise.png)
Low Noise
Innovative refrigeration cabin design reduces operational noise
![reliable.png](https://static.wixstatic.com/media/8c064d_40d3638325674081bc94b2e7b6583cad~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/reliable.png)
Reliable Performance
Cabinet temperature can reach -86℃ with temp uniformity within 5℃
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
828/29.2
Exterior Dimention(W*D*H)mm
1145*980*1980
Exterior Dimension(W*D*H)(in)
41*38.6*78
![DW-86L728J.png](https://static.wixstatic.com/media/8c064d_8019b15e3bdb4b9aa6f4296bbf730757~mv2.png/v1/fill/w_52,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L728J.png)
-86℃ Ultra Low Temperature Freezer DW-86L728J
Product Features
![energyrfriendly.png](https://static.wixstatic.com/media/8c064d_3d7bf480f525400b898f64279968fea8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/energyrfriendly.png)
Energy Efficient
World leading power consumption, only 10.5 Kwh/day
![lownoise.png](https://static.wixstatic.com/media/8c064d_72a115eab45e4d5fb85a39e8a2a50dfd~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/lownoise.png)
Low Noise
Innovative refrigeration cabin design reduces operational noise
![reliable.png](https://static.wixstatic.com/media/8c064d_40d3638325674081bc94b2e7b6583cad~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/reliable.png)
Reliable Performance
Cabinet temperature can reach -86℃ with temp uniformity within 5℃
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
728/25.7
Exterior Dimention(W*D*H)mm
1041*980*1980
Exterior Dimension(W*D*H)(in)
41*38.6*78
![DW-86L420J.png](https://static.wixstatic.com/media/8c064d_acdd9835816645aab573d7cb6515bbe0~mv2.png/v1/fill/w_87,h_67,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L420J.png)

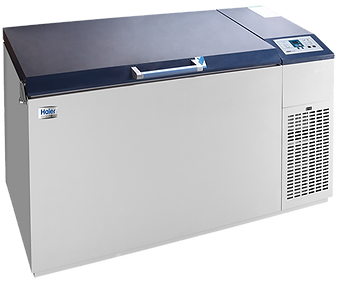

-86℃ Ultra Low Temperature Freezer DW-86L420J
Product Features
![saveenergy.png](https://static.wixstatic.com/media/8c064d_05066452c95a4ff1afbe8c07fd65b3f8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/saveenergy.png)
Energy savings
Three independent inner doors and three layer sealing structure, having good heat insulation to reduce energy consumption.
![lownoise.png](https://static.wixstatic.com/media/8c064d_72a115eab45e4d5fb85a39e8a2a50dfd~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/lownoise.png)
Low Noise
Innovative refrigeration cabin design reduces operational noise
![reliable.png](https://static.wixstatic.com/media/8c064d_40d3638325674081bc94b2e7b6583cad~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/reliable.png)
Reliable Performance
Cabinet temperature can reach -86℃ with temp uniformity within 4℃
Product Parameters
Cabinet Type
Upright
Climate Class
N
Cooling Type
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
420/14.8
Exterior Dimention(W*D*H)mm
2130*870*1020
Exterior Dimension(W*D*H)(in)
83.9*34.3*40.2
![DW-86L579.png](https://static.wixstatic.com/media/8c064d_2f6da8065f8d44ceaed68977a93885fc~mv2.png/v1/fill/w_54,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L579.png)

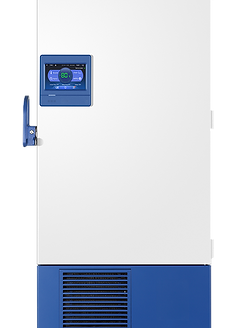

-86℃ Ultra Low Temperature Freezer DW-86L579
Product Features
![materialmgmt.png](https://static.wixstatic.com/media/8c064d_d9f3cacdad724a4c8a60d53c974a4ebc~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/materialmgmt.png)
Stored Items(materials) Management System
An accurate stored items management system was developed for users who don’t use freezer racks, boxes and vials, the system easily records the items locations, entry and exit records and largely facilitate item inventory and statistics.
![realtime.png](https://static.wixstatic.com/media/8c064d_92b885c6e02942d685ce7cf77baf8203~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/realtime.png)
Optional To TSystem Real-time Monitoring
The IoT APP can monitor the operating status of the equipment anytime and anywhere. The unit is equipped with self-diagnose system faults and alarm functions, ensuring sample safety.
![LargeScreen.png](https://static.wixstatic.com/media/8c064d_d322ec8567fb4e17a0562f7e7771f6d1~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/LargeScreen.png)
Intelligent Large Screen Visual Management
10-inch high-performance LCD capacitive screen, sensitive touch operation; intuitive display of inside temperature, ambient temperature, input voltage and other data and temperature curves
![MultiInterface.png](https://static.wixstatic.com/media/8c064d_daf77067bd5043c88c755fd4e8abc925~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/MultiInterface.png)
Equipped with Multiple Interfaces
Standard USB interface, capable of storing data for 10 years ·Standard remote alarm terminal and RS485 port
![Safety.png](https://static.wixstatic.com/media/8c064d_7d3416688adf4dadb5e61cc3d3aec6e4~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Safety.png)
Safety Management and Control System
Password lock, fingerprint module (optional) , punch card module (optional), face recognition (optional), the system has multi-person management control options, safe, secure and reliable.
![TempControl.png](https://static.wixstatic.com/media/8c064d_7f04299015124a699fd874f1d3f823b9~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/TempControl.png)
Precise Temperature Control, Safe & Secure Storage​​
The setting temperature is adjustable between -40 ~ -86°C, monitoring temperature curves in real time, and the temperature safety alarm system is the latest design and state-of-the-art technology.
![Alarm.png](https://static.wixstatic.com/media/8c064d_f6e07179a1ce4f42b0b27e2ec2c489bf~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Alarm.png)
Multiple Alarm Functions, More Safe and Secure
Designed and manufactured with multiple alarm functions, such as high temperature alarm, low temperature alarm, sensor failure alarm, power failure alarm, low battery alarm, door ajar alarm and high ambient temperature alarm to name a few.
Product Parameters
Cabinet Type
Upright
Cooling Type
Direct Cooling
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
579/20.45
Exterior Dimention(W*D*H)mm
620*716*1310
Exterior Dimension(W*D*H)(in)
903*980*1960
![DW-86L419.png](https://static.wixstatic.com/media/8c064d_a53e1785226c491eab9e351780f393ca~mv2.png/v1/fill/w_63,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L419.png)
-86℃ Ultra Low Temperature Freezer DW-86L419
Product Features
![saveenergy.png](https://static.wixstatic.com/media/8c064d_05066452c95a4ff1afbe8c07fd65b3f8~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/saveenergy.png)
High-efficiency and Energy-saving Compressor
Adopting high-efficiency HC compressor and optimized refrigeration n system, safe and secure.
![LargeScreen.png](https://static.wixstatic.com/media/8c064d_d322ec8567fb4e17a0562f7e7771f6d1~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/LargeScreen.png)
Intelligent Large Screen Visual Management
10-inch high-performance LCD capacitive screen, sensitive touch operation; intuitive display of inside temperature, ambient temperature, input voltage and other data and temperature curves
![MultiInterface.png](https://static.wixstatic.com/media/8c064d_daf77067bd5043c88c755fd4e8abc925~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/MultiInterface.png)
Equipped with Multiple Interfaces
Standard USB interface, capable of storing data for 10 years ·Standard remote alarm terminal and RS485 port
![Safety.png](https://static.wixstatic.com/media/8c064d_7d3416688adf4dadb5e61cc3d3aec6e4~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Safety.png)
Safety Management and Control System
Password lock, fingerprint module (optional) , punch card module (optional), face recognition (optional), the system has multi-person management control options, safe, secure and reliable.
![TempControl.png](https://static.wixstatic.com/media/8c064d_7f04299015124a699fd874f1d3f823b9~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/TempControl.png)
Precise Temperature Control, Safe & Secure Storage​​
The setting temperature is adjustable between -40 ~ -86°C, monitoring temperature curves in real time, and the temperature safety alarm system is the latest design and state-of-the-art technology.
![Alarm.png](https://static.wixstatic.com/media/8c064d_f6e07179a1ce4f42b0b27e2ec2c489bf~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Alarm.png)
Multiple Alarm Functions, More Safe and Secure
Designed and manufactured with multiple alarm functions, such as high temperature alarm, low temperature alarm, sensor failure alarm, power failure alarm, low battery alarm, door ajar alarm and high ambient temperature alarm to name a few.
Product Parameters
Cabinet Type
Upright
Cooling Type
Direct Cooling
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
419/14.8
Exterior Dimention(W*D*H)mm
465*716*1310
Exterior Dimension(W*D*H)(in)
830*980*1980
![DW-86L829.png](https://static.wixstatic.com/media/8c064d_ddd4453d469840dc96c194dbc092dfe7~mv2.png/v1/fill/w_54,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L829.png)
-86℃ Ultra Low Temperature Freezer DW-86L829
Product Features
![materialmgmt.png](https://static.wixstatic.com/media/8c064d_d9f3cacdad724a4c8a60d53c974a4ebc~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/materialmgmt.png)
Stored Items(materials) Management System
An accurate stored items management system was developed for users who don’t use freezer racks, boxes and vials, the system easily records the items locations, entry and exit records and largely facilitate item inventory and statistics.
![realtime.png](https://static.wixstatic.com/media/8c064d_92b885c6e02942d685ce7cf77baf8203~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/realtime.png)
Optional To TSystem Real-time Monitoring
The IoT APP can monitor the operating status of the equipment anytime and anywhere. The unit is equipped with self-diagnose system faults and alarm functions, ensuring sample safety.
![LargeScreen.png](https://static.wixstatic.com/media/8c064d_d322ec8567fb4e17a0562f7e7771f6d1~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/LargeScreen.png)
Intelligent Large Screen Visual Management
10-inch high-performance LCD capacitive screen, sensitive touch operation; intuitive display of inside temperature, ambient temperature, input voltage and other data and temperature curves
![MultiInterface.png](https://static.wixstatic.com/media/8c064d_daf77067bd5043c88c755fd4e8abc925~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/MultiInterface.png)
Equipped with Multiple Interfaces
Standard USB interface, capable of storing data for 10 years ·Standard remote alarm terminal and RS485 port
![Safety.png](https://static.wixstatic.com/media/8c064d_7d3416688adf4dadb5e61cc3d3aec6e4~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Safety.png)
Safety Management and Control System
Password lock, fingerprint module (optional) , punch card module (optional), face recognition (optional), the system has multi-person management control options, safe, secure and reliable.
![TempControl.png](https://static.wixstatic.com/media/8c064d_7f04299015124a699fd874f1d3f823b9~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/TempControl.png)
Precise Temperature Control, Safe & Secure Storage​​
The setting temperature is adjustable between -40 ~ -86°C, monitoring temperature curves in real time, and the temperature safety alarm system is the latest design and state-of-the-art technology.
![Alarm.png](https://static.wixstatic.com/media/8c064d_f6e07179a1ce4f42b0b27e2ec2c489bf~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Alarm.png)
Multiple Alarm Functions, More Safe and Secure
Designed and manufactured with multiple alarm functions, such as high temperature alarm, low temperature alarm, sensor failure alarm, power failure alarm, low battery alarm, door ajar alarm and high ambient temperature alarm to name a few.
Product Parameters
Cabinet Type
Upright
Cooling Type
Direct Cooling
Refrigerant
HC
Temperature Range (℃)
-40—86
Capacity (L/Cu.Ft)
829/29.3
Exterior Dimention(W*D*H)mm
870*716*1310
Exterior Dimension(W*D*H)(in)
1153*980*1980
![DW-86L729.png](https://static.wixstatic.com/media/8c064d_3b9f0449b4b445f68850b988772ab15c~mv2.png/v1/fill/w_55,h_82,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/DW-86L729.png)
-86℃ Ultra Low Temperature Freezer DW-86L729
Product Features
![materialmgmt.png](https://static.wixstatic.com/media/8c064d_d9f3cacdad724a4c8a60d53c974a4ebc~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/materialmgmt.png)
Stored Items(materials) Management System
An accurate stored items management system was developed for users who don’t use freezer racks, boxes and vials, the system easily records the items locations, entry and exit records and largely facilitate item inventory and statistics.
![realtime.png](https://static.wixstatic.com/media/8c064d_92b885c6e02942d685ce7cf77baf8203~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/realtime.png)
Optional To TSystem Real-time Monitoring
The IoT APP can monitor the operating status of the equipment anytime and anywhere. The unit is equipped with self-diagnose system faults and alarm functions, ensuring sample safety.
![LargeScreen.png](https://static.wixstatic.com/media/8c064d_d322ec8567fb4e17a0562f7e7771f6d1~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/LargeScreen.png)
Intelligent Large Screen Visual Management
10-inch high-performance LCD capacitive screen, sensitive touch operation; intuitive display of inside temperature, ambient temperature, input voltage and other data and temperature curves
![MultiInterface.png](https://static.wixstatic.com/media/8c064d_daf77067bd5043c88c755fd4e8abc925~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/MultiInterface.png)
Equipped with Multiple Interfaces
Standard USB interface, capable of storing data for 10 years ·Standard remote alarm terminal and RS485 port
![Safety.png](https://static.wixstatic.com/media/8c064d_7d3416688adf4dadb5e61cc3d3aec6e4~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Safety.png)
Safety Management and Control System
Password lock, fingerprint module (optional) , punch card module (optional), face recognition (optional), the system has multi-person management control options, safe, secure and reliable.
![TempControl.png](https://static.wixstatic.com/media/8c064d_7f04299015124a699fd874f1d3f823b9~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/TempControl.png)
Precise Temperature Control, Safe & Secure Storage​​
The setting temperature is adjustable between -40 ~ -86°C, monitoring temperature curves in real time, and the temperature safety alarm system is the latest design and state-of-the-art technology.
![Alarm.png](https://static.wixstatic.com/media/8c064d_f6e07179a1ce4f42b0b27e2ec2c489bf~mv2.png/v1/fill/w_42,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Alarm.png)
Multiple Alarm Functions, More Safe and Secure
Designed and manufactured with multiple alarm functions, such as high temperature alarm, low temperature alarm, sensor failure alarm, power failure alarm, low battery alarm, door ajar alarm and high ambient temperature alarm to name a few.
