BLOOD BANK
PRODUCT

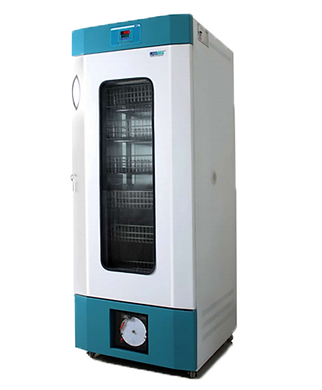

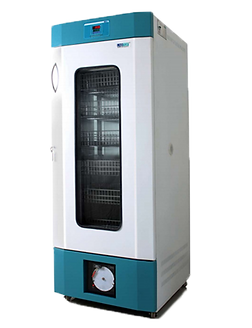

BLOOD BANK REFRIGERATORS
GENERAL FEATURES
Applications include refrigerated storage of Vaccines, Reagents, Cultures, Medicines and Blood samples. Preset o Temperature of 4.0 °C with micro controller based temperature controller includes digital temperature display of set value and process value, Forced air circulation for maximum temperature uniformity
​
CABINET CONSTRUCTION
The cabinet of Laptop Blood bank refrigerators is insulated with high density CFC free Poly Urethane Foam. Interior of chamber is stainless steel (304, 0.8 mm thick). The exterior is white powder coated (1.0 mm thick) mild steel and the door has a magnetic gasket with a keyed lock. Stainless steel baskets are provided inside.
Programmable logic controller (PLC) System
A programmable logic controller (PLC) is a digital computer used for automation of controlling electromechanical processes, such as control of Temperature, Relative Humidity, Standby systems and event management with less maintenance hence no moving parts.
-
PLC with 4.3” touch screen and color Display
-
Password protected Human Machine Interface (HMI)
-
Data storage to record set values, process values, date & time with variable time intervals
-
Display of set value and process value
-
Auto changeover of standby systems and other event managements
-
High speed Ethernet connectivity
-
Data logging capacity up to 200000 readings
-
Programmable alarms with event management
-
Log reports of event management
-
Self diagnostic system with error
Blood Bank Refrigerated Centrifuge
PRODUCT FEATURES
Maximum Speed 4600 rpm
Maximum r c f 7060xg
Maximum capacity 12 Blood bags of 450 ml
Programmable Logic C control (PLC)
4.3 “ password protected HMI with touch screen
Motorised double lock for better safety
99 Menu driven programs
High speed Ethernet connectivity
Self diagnostic system with error messages
Adjustable levelling jack
Castor wheels for ease of mobility
Programmable logic controller (PLC) System
A programmable logic controller (PLC) is a digital computer used for automation of controlling electromechanical processes, such as control of Temperature, Relative Humidity, Standby systems and event management with less maintenance hence no moving parts.
​
-
PLC with 4.3” touch screen and colour Display
-
Password protected Human Machine Interface (HMI)
-
Data storage to record set values, process values, date & time with variable time intervals
-
Display of set value and process value
-
High speed Ethernet connectivity
-
Precise control of temperature and Speed by using in PID control ( auto tuning type)
-
Connectivity to LABTOP DATALINX central monitoring software
-
Log report of alarms and event management
-
Temperature and Speed is controlled by PLC
-
1- 99 Minutes timer
-
Self diagnostic system with error display
-
Data logging capacity up to 1000 readings
-
High quality PT-100 sensor for better accuracy
-
Programmable alarms with event management
Technical Specifications
Ice Lined Freezers
Labtop vaccine storage Freezers are specially designed for refrigerated storage of vaccine at -20.0º C as per WHO guide lines. Theses freezers are equipped with a micro controller based temperature controller includes digital temperature display of set value and process value. Temperature alarm system with adjustable high/low alarm limits includes audible and visual warning.
​
-
Foamed in place CFC free PUF insulation ensures temperature stability and reduced power consumption.
-
Specially designed trays ensure even temperature distribution.
-
Castor wheels for ease of mobility.
-
Adjustable leveling jack.
-
Meets WHO / UNICEF standards.
-
Thermometer to check the temperature on power failure.
Technical Specifications
Laboratory Centrifuges
-
Maintenance free brushless motor
-
Rotor selection
-
Electronic Safety door lock
-
Imbalance cut off with error messages
-
Colour display with touch screen t any type of tubes in a single rotor
-
Can Fit any type of tubes in a single rotor
Technical Specifications

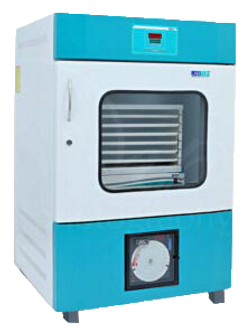

Platelet Incubator and Agitator
-
PLC with 4.3” touch screen and color Display
-
Password protected Human Machine Interface (HMI)
-
Data storage to record set values, process values, date & time with variable time intervals
-
Display of set value and process value
-
Auto changeover of standby systems and other event managements
-
High speed Ethernet connectivity
-
Precise control of temperature by using in PID control ( auto tuning type)
-
Connectivity to LABTOP DATALINX central monitoring software
-
High quality PT-100 Sensor for better accuracy
Temperature Control System
​
-
Micro-control based Temperature controller
-
Digit, 7 segment LED display
-
Audio visual alarm when the temperature deviates from the set temperature.
-
Password protected keypad lock
-
Visual alarm for faulty Sensor
-
Display of set temperature and process temperature
-
High quality PT-100 Sensor for better accuracy
-
Temperature alarm system with adjustable high-low alarm limits.
Technical Specifications

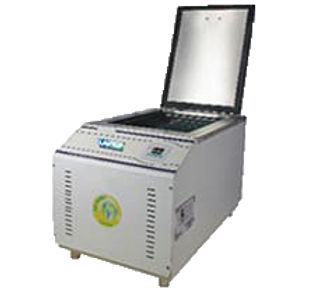

Plasma Thawing Bath
-
High quality PT-100 Sensor for better accuracy
-
Micro-controller controls the internal temperature within ± 0.5 ºC
-
Display of set value and process value and Audio Visual Alarm
-
Seamless Stainless Tank with round corners
-
Acrylic Plasma Holder
-
Circulator for Temperature Uniformity
-
Password protected key-pad lock
